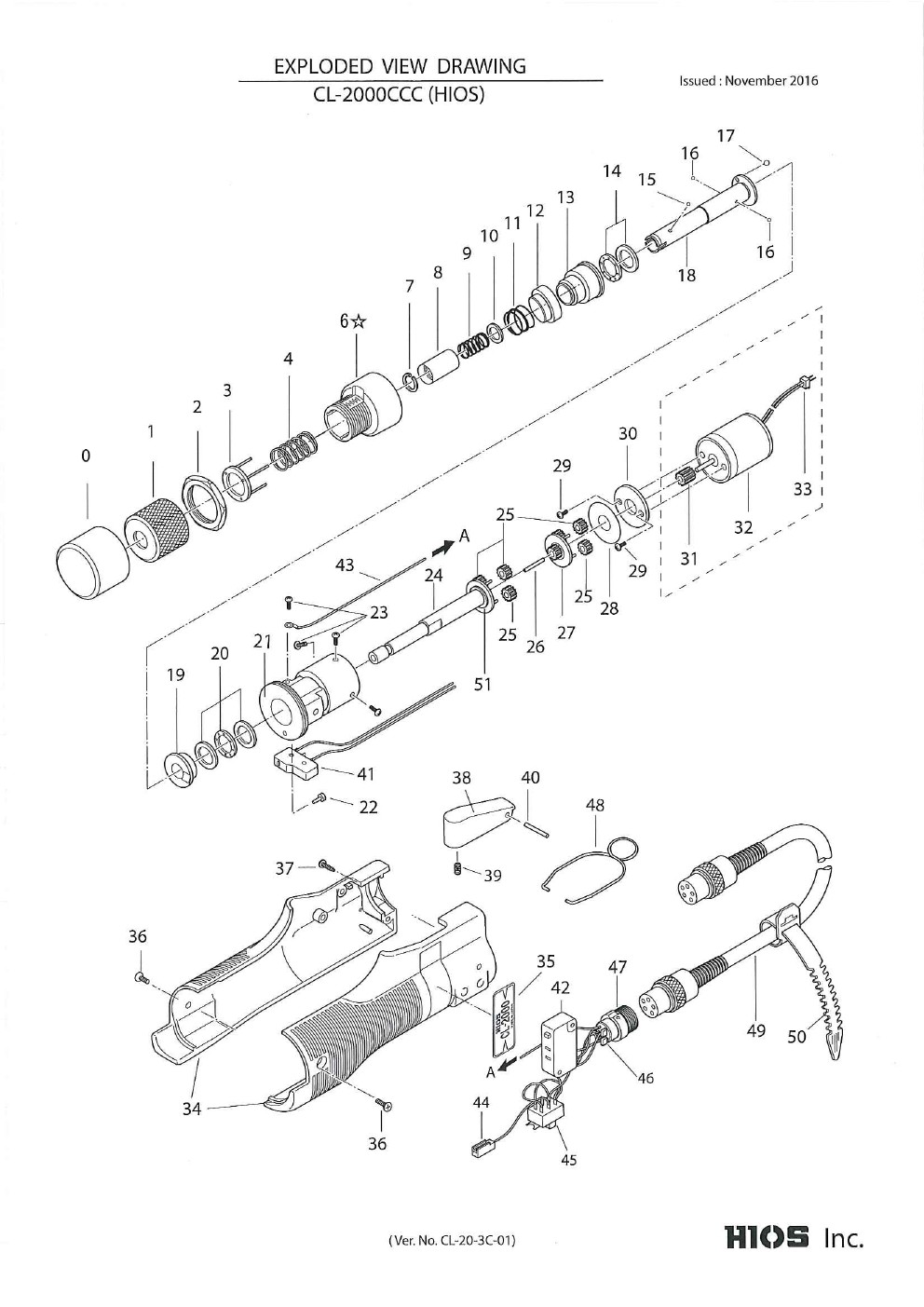

Parts List of CL-2000CCC
(HIOS SHANK) |
|
No. |
Parts Name |
Parts No. |
|
No. |
Parts Name |
Parts No. |
|
|
Transmission Assembly 1 - 26 (W/O 21) |
CL21-TM |
|
|
Motor Assembly 31-33 |
CL2-MT |
|
0 |
Torque Adjustment Nut Protect Cover |
CL2-0001 |
|
|
|
|
|
1 |
Torque Adjusting Nut |
CL21-0040 |
|
31 |
Pinion Gear (Include Motor Assy) |
— |
|
2 |
Nut Fixing Ring |
BL2-0020 |
|
|
|
|
|
3 |
Torque Adjusting Spring Holder A |
CL2-0010 |
|
32 |
Motor (Include Motor Assy) |
— |
|
4 |
Torque Adjusting Spring (Black) |
CL2-0050-2 |
|
33 |
Connector 5045-02A (Include Motor Assy) |
— |
|
|
Torque Adjusting Spring (Yellow) |
CL2-0050-1 |
|
|
|
|
|
|
|
|
|
34 |
Body Case A & B |
CL2C-0380 |
|
5 |
------------------------- |
|
|
35 |
Name Plate |
CL2C-0470 |
|
6 |
Torque Adjusting Bolt |
CL21-0070 |
|
36 |
Set Screw 2.6x6 |
MSFF26060NITP |
|
7 |
Collar Stopper |
CL2-0100 |
|
37 |
Set Screw 3.5x12 |
B0HD5F35120NITP |
|
8 |
Joint Shaft Collar |
CL2-0110 |
|
38 |
Switch Lever |
CL2C-0410 |
|
9 |
Joint Shaft Collar Spring |
CL2-0120 |
|
39 |
Switch Lever Spring |
CL2C-0430 |
|
10 |
Washer 6.6X8.5X0.5 |
CL2-0130 |
|
40 |
Steel Shaft 2φX 18.8 |
VZ18-0580 |
|
11 |
Clutch Panel Spring |
CL2-0161 |
|
|
|
|
|
12 |
Clutch Panel B |
CL2-0151 |
|
|
|
|
|
13 |
Clutch Panel A |
CL2-0171 |
|
|
|
|
|
14 |
Thrust Bearing T-1370T1 |
CL2-0190 |
|
|
Circuit Assembly 39 - 46 |
CL2C-CC |
|
15 |
Steel Ball Ø1.5 |
BALL-015 |
|
|
|
|
|
16 |
Steel Ball Ø2.0 |
BALL-02 |
|
41 |
Limit Switch |
CL4-0230 |
|
17 |
Steel Ball Ø3.17 |
BALL-0317 |
|
|
|
|
|
18 |
Joint Shaft |
CL2-0210 |
|
42 |
Starting Switch |
CL4-0570 |
|
19 |
Cam |
CL2-0231 |
|
43 |
Ground Connector (41-319)(Included in Circuit Assy) |
— |
|
20 |
Thrust Bearing T-1160 |
A45-0170 |
|
44 |
Housing Assy (5051-02)(Included in Circuit Assy) |
— |
|
21 |
Gear Case Assy |
CL21-0270 |
|
45 |
For/Rev Switch |
CL2-0450 |
|
22 |
Limit Pin |
CL2-0250 |
|
46 |
Film Condenser |
CL2-0440 |
|
23 |
Set Screw 2x4 |
SPC20X040 |
|
|
|
|
|
|
|
|
|
48 |
Hanger |
CL4-0594 |
|
24 |
Lower Planet Cage |
CL2-0280 |
|
|
|
|
|
25 |
Planet Gear |
CL2-0290 |
|
49 |
5-Core Cord W/Connector for CCC |
CL4-0612 |
|
26 |
Steel Shaft Ø2x9.8 |
CL65PS-0150 |
|
50 |
Free-Up Belt |
CL4-0600 |
|
27 |
Upper Planet Cage |
CL2-0320 |
|
51 |
Washer 6.1X10.5X0.30 (1pc Using) |
CL2-0700-30 |
|
28 |
Oil Seal |
CL2-0330 |
|
|
|
|
|
|
|
|
|
☆ |
Jig for CL-2000 |
CL2-0020A |
|
29 |
Set Screw 2x5 |
STP20X050 |
|
|
|
|
|
30 |
Motor Front Panel |
CL2-0340 |
|
|
|
|
