V-17

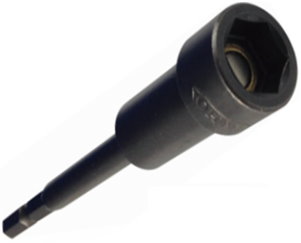

Nut Setter

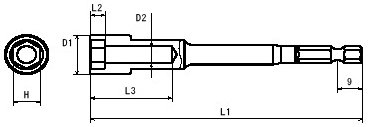

External Nut Setter

Order No.	H	L2	D1	L1	D2	L3	Weight
Order No.	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(g)
V-17B H5x32 *	5	2.5	8	32	5	3.5	9
V-17B H5.5x32 *	5.5	3.5	9	32	5.5	4.5	9
V-17B H5.5x9.5x50	5.5	4	9.5	50	3.5	15	14
V-17B H5.5x70	5.5	3.5	9	70	5.3	19	22
V-17B H5.5x100	5.5	3.5	9	100	5.3	19	31
V-17B H5.5x150	5.5	3.5	9	150	5.3	19	46
V-17B H6x32 *	6	3.5	10	32	6	5	10
V-17B H6x9.5x50	6	4	9.5	50	4	15	14
V-17B H7x32 *	7	4	11	32	7	5.5	9
V-17B H7x11x50	7	5	11	50	4.5	20	14
V-17B H8x32 *	8	4.5	13	32	8	6	11
V-17B H8x13x50	8	5.5	13	50	5.5	20	17
V-17B H9x32 *	9	5	13	32	9	6.5	12
V-17B H10x32 *	10	5.5	16	32	10	7	18
V-17B H10x15x50	10	6	15	50	7	20	32
V-17B H10x70	10	5.5	16	70	7	25	37
V-17B H10x100	10	5.5	16	100	7	30	50
V-17B H10x150	10	5.5	16	150	7	30	69
V-17B H10x200	10	5.5	16	200	7	30	81
V-17B H11x70	11	6	16	70	9	25	31
V-17B H11x100	11	6	16	100	9	30	43
V-17B H11x150	11	6	16	150	9	30	62
V-17B H12x34 *	12	7	18	34	12	9.5	20
V-17B H12x70	12	7	18	70	9	25	42
V-17B H12x100	12	7	18	100	9	30	55
V-17B H12x150	12	7	18	150	9	30	74
V-17B H12x200	12	7	18	200	9	30	94
V-17B H13x70	13	7.5	20	70	10	25	46
V-17B H13x100	13	7.5	20	100	10	30	58
V-17B H13x150	13	7.5	20	150	10	30	80
V-17B H14x70	14	7.5	20	70	11	25	46
V-17B H14x100	14	7.5	20	100	11	30	58
V-17B H14x150	14	7.5	20	150	11	30	78
V-17B H14x200	14	7.5	20	200	11	30	97
V-17B H17x70	17	8	24	70	13	25	64
V-17B H17x100	17	8	24	100	13	30	79
V-17B H17x150	17	8	24	150	13	30	99
* Custom made item.

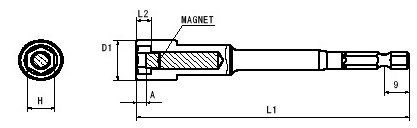

External Nut Setter (Fixed Magnet)

Order No.	H	L2	D1	L1	A	Weight
Order No.	(mm)	(mm)	(mm)	(mm)	(mm)	(g)
V-17B H5.5x70 MAG	5.5	3.5	9	70	within 3.5	*
V-17B H5.5x100 MAG	5.5	3.5	9	100	within 3.5	*
V-17B H5.5x150 MAG	5.5	3.5	9	150	within 3.5	*
V-17B H10x70 MAG	10	5.5	16	70	within 5.5	*
V-17B H10x100 MAG	10	5.5	16	100	within 5.5	*
V-17B H10x150 MAG	10	5.5	16	150	within 5.5	*
V-17B H 10x200 MAG	10	5.5	16	200	within 5.5	*
V-17B H12x70 MAG	12	7	18	70	within 7	*
V-17B H12x100 MAG	12	7	18	100	within 7	*
V-17B H12x150 MAG	12	7	18	150	within 7	*
V-17B H12x200 MAG	12	7	18	200	within 7	*
V-17B H13x70 MAG	13	7.5	20	70	within 7.5	*
V-17B H13x100 MAG	13	7.5	20	100	within 7.5	*
V-17B H13x150 MAG	13	7.5	20	150	within 7.5	*
V-17B H14x70 MAG	14	7.5	20	70	within 7.5	*
V-17B H14x100 MAG	14	7.5	20	100	within 7.5	*
V-17B H14x150 MAG	14	7.5	20	150	within 7.5	*
V-17B H14x200 MAG	14	7.5	20	200	within 7.5	*
V-17B H17x70 MAG	17	8	24	70	within 8	*
V-17B H17x100 MAG	17	8	24	100	within 8	*
V-17B H17x150 MAG	17	8	24	150	within 8	*

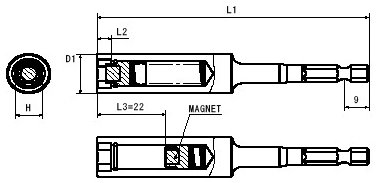

Nut Setter (Slide Magnet)

Order No.	H	L2	D1	L1	L3	Weight
Order No.	(mm)	(mm)	(mm)	(mm)	(mm)	(g)
V-17B H10x75 SM	10	5.5	16	75	22	*
V-17B H10x100 SM	10	5.5	16	100	22	*
V-17B H10x150 SM	10	5.5	16	150	22	*
V-17B H 10x200 SM	10	5.5	16	200	22	*
V-17B H12x75 SM	12	7	18	75	22	*
V-17B H12x100 SM	12	7	18	100	22	*
V-17B H12x150 SM	12	7	18	150	22	*
V-17B H12x200 SM	12	7	18	200	22	*
V-17B H13x75 SM	13	7.5	20	75	22	*
V-17B H13x100 SM	13	7.5	20	100	22	*
V-17B H13x150 SM	13	7.5	20	150	22	*
V-17B H14x75 SM	14	7.5	20	75	22	*
V-17B H14x100 SM	14	7.5	20	100	22	*
V-17B H14x150 SM	14	7.5	20	150	22	*
V-17B H17x75 SM	17	8	24	75	22	*
V-17B H17x100 SM	17	8	24	100	22	*
V-17B H17x150 SM	17	8	24	150	22	*

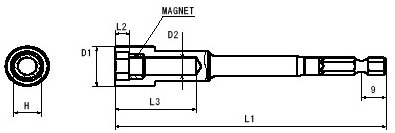

Nut Setter (Magnet Ring)

Order No.	H	L2	D1	L1	D2	L3	Weight	Weight
Order No.	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(g)	(g)
V-17B H10x70 MR	10	5.5	16	70	7	25	*	9
V-17B H10x100 MR	10	5.5	16	100	7	30	*	9
V-17B H10x150 MR	10	5.5	16	150	7	30	*	14
V-17B H10x200 MR	10	5.5	16	200	7	30	*	22
V-17B H12x70 MR	12	7	18	70	9	25	*	31
V-17B H12x100 MR	12	7	18	100	9	30	*	46
V-17B H12x150 MR	12	7	18	150	9	30	*	10
V-17B H12x200 MR	12	7	18	200	9	30	*	14
V-17B H13x70 MR	13	7.5	20	70	10	25	*	9
V-17B H13x100 MR	13	7.5	20	100	10	30	*	14
V-17B H13x150 MR	13	7.5	20	150	10	30	*	11
V-17B H14x70 MR	14	7.5	20	70	11	25	*	17
V-17B H14x100 MR	14	7.5	20	100	11	30	*	12
V-17B H14x150 MR	14	7.5	20	150	11	30	*	18
V-17B H14x200 MR	14	7.5	20	200	11	30	*	32
V-17B H17x70 MR	17	8	24	70	13	25	*	37
V-17B H17x100 MR	17	8	24	100	13	30	*	50
V-17B H17x150 MR	17	8	24	150	13	30	*	69
* Custom made item.
