OHMI近江精機

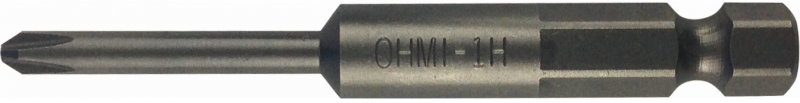

V-17

十字

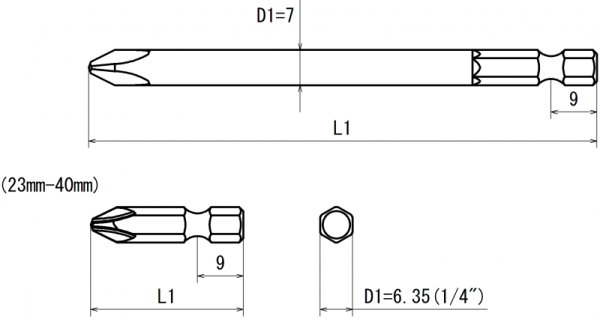

產品編號	先前端	D1	L1	硬度	重量
產品編號	紀號	(mm)	(mm)		(g)
V-17 No.1x6.35x23	No.1	6.35(六角)	23	—	4
V-17 No.1x6.35x30	No.1	6.35(六角)	30	—	6
V-17 No.1x6.35x40	No.1	6.35(六角)	40	—	9
V-17 No.1x7x50	No.1	7	50	—	12
V-17 No.1x7x75	No.1	7	75	—	19
V-17 No.1x7x100	No.1	7	100	—	27
V-17 No.1x7x120	No.1	7	120	—	33
V-17 No.1x7x150	No.1	7	150	—	42
V-17 No.1x7x200	No.1	7	200	—	56
V-17 No.1x7x250	No.1	7	250	—	*
V-17 No.1x7x300	No.1	7	300	—	*
V-17 No.2x6.35x23	No.2	6.35(六角)	23	—	4
V-17 No.2x6.35x30	No.2	6.35(六角)	30	—	6
V-17 No.2x6.35x40	No.2	6.35(六角)	40	—	9
V-17 No.2x7x50 N *	No.2	7	50	N	12
V-17 No.2x7x50 Y *	No.2	7	50	Y	12
V-17 No.2x7x75 N *	No.2	7	75	N	19
V-17 No.2x7x75 Y *	No.2	7	75	Y	19
V-17 No.2x7x100 N *	No.2	7	100	N	27
V-17 No.2x7x100 Y *	No.2	7	100	Y	27
V-17 No.2x7x120	No.2	7	120	—	33
V-17 No.2x7x150 N *	No.2	7	150	N	42
V-17 No.2x7x150 Y *	No.2	7	150	Y	42
V-17 No.2x7x200	No.2	7	200	—	56
V-17 No.2x7x250	No.2	7	250	—	71
V-17 No.2x7x300	No.2	7	300	—	86
V-17 No.3x6.35x30	No.3	6.35(六角)	30	—	6
V-17 No.3x7x50	No.3	7	50	—	12
V-17 No.3x7x75	No.3	7	75	—	20
V-17 No.3x7x100	No.3	7	100	—	27
V-17 No.3x7x120	No.3	7	120	—	33
V-17 No.3x7x150	No.3	7	150	—	42
V-17 No.3x7x200	No.3	7	200	—	57
V-17 No.3x7x250	No.3	7	250	—	72
V-17 No.3x7x300	No.3	7	300	—	87
* 客戶特製型號
* 有二種硬度，但如沒特別指明，只會銷售"N"(普通硬度)
硬度 … 加硬 … Y 普通硬度 … N

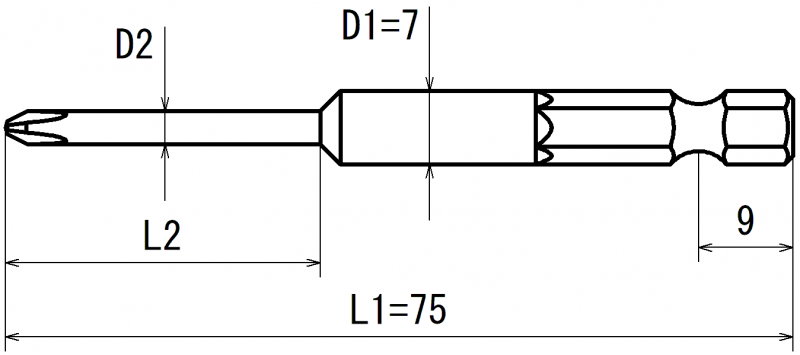

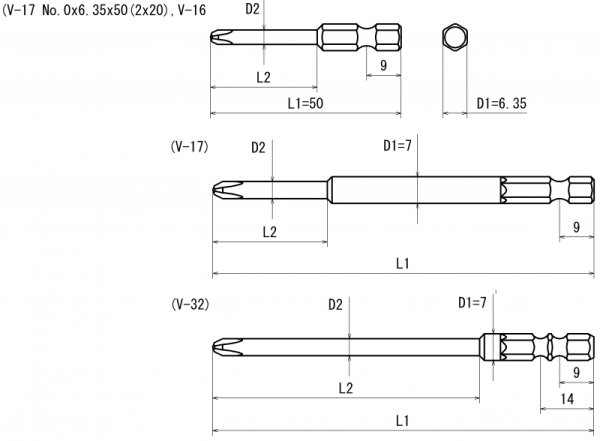

產品編號	先前端	D1	L1	D2	L2	重量
產品編號	紀號	(mm)	(mm)	(mm)	(mm)	(g)
V-17 No.0x6.35x50(2x20)	No.0	6.35(hex)	50	2	20	8
V-16 No.0x6.35x50(3.8x28)	No.0	6.35(hex)	50	3.8	28	7
V-17 No.0x7x75(3x30)	No.0	7	75	3	30	13
V-16 No.1x6.35x50(3.8x28)	No.1	6.35(hex)	50	3.8	28	7
V-17 No.1x7x75(3.5x30)	No.1	7	75	3.5	30	14
V-16 No.2x6.35x50(3.8x28)	No.2	6.35(hex)	50	3.8	28	7
V-17 No.2x7x75(3.5x30)	No.2	7	75	3.5	30	14
V-17 No.2x7x75(4.5x30)	No.2	7	75	4.5	30	15
V-32 No.2x7x75(4.5x45)	No.2	7	75	4.5	45	12
V-17 No.2x7x100(4.5x30)	No.2	7	100	4.5	30	23
V-32 No.2x7x100(4.5x70)	No.2	7	100	4.5	70	15
V-32 No.2x7x150(4.5x120)	No.2	7	150	4.5	120	21

V-17 6.35mm 十字 (磁化)

產品編號	先前端	D1	L1	D2	L2	重量
產品編號	紀號	(mm)	(mm)	(mm)	(mm)	(g)
V-17 No.0x7x75(1.4x20) MAG	No.0	7	75	1.4	20	15
V-17 No.0x7x75(2x20) MAG	No.0	7	75	2	20	15
V-17 No.1x7x75(2.3x20) MAG	No.1	7	75	2.3	20	15
V-17 No.1x7x75(3.2x30) MAG	No.1	7	75	3.2	30	14
V-17 No.2x7x75(3x30) MAG	No.2	7	75	3	30	14
V-17 No.2x7x75(3.2x30) MAG	No.2	7	75	3.2	30	14
