Model Name

Lever Start type Model

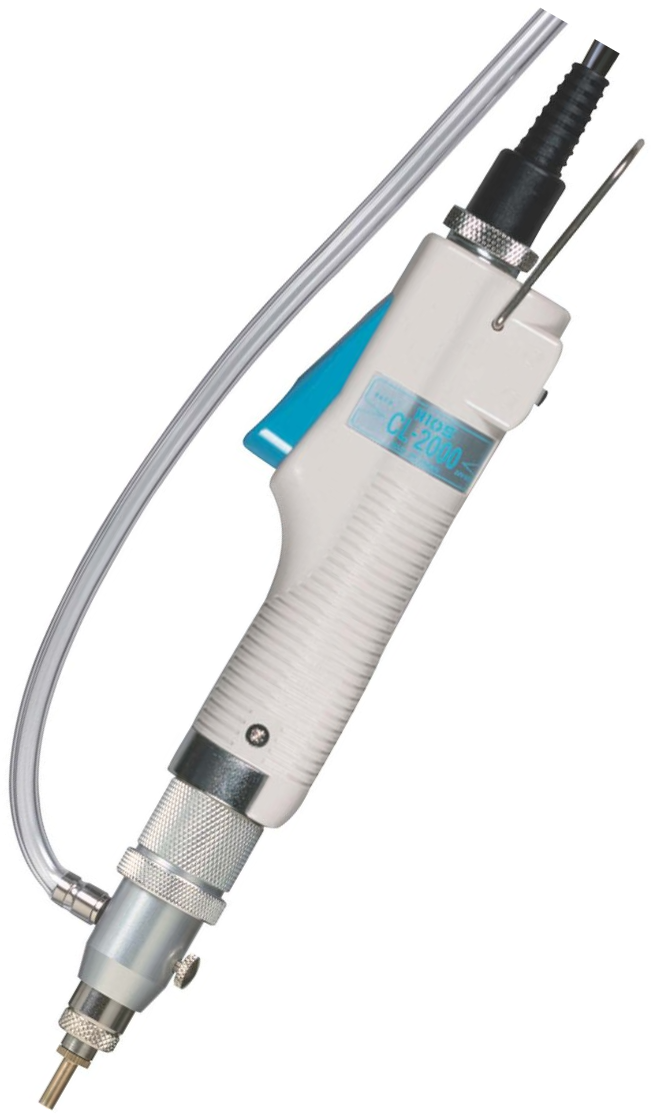

CLQ-2000

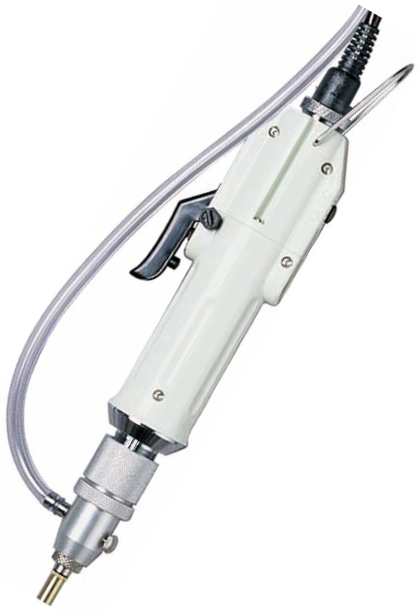

CLQ-3000

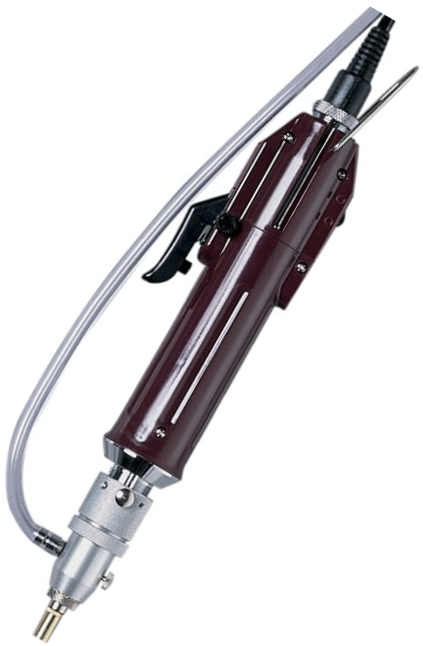

CLQ-4000

Output Torque Range

N.m

0.02 ~ 0.2

0.03 ~ 0.2

0.1 ~ 0.55

lbf.in

0.17 ~ 1.7

0.3 ~ 1.7

0.9 ~ 4.8

(kgf.cm)

(0.2- 2)

(0.3 - 2)

(1 - 5.5)

Unloaded Rotation
(r.p.m) ± 10%

High

690

1,000

1,000

Low

490

670

690

Screw Size (mm)

Machine Screw

1.0 ~ 2.3

1.0 ~ 2.0

1.4 ~ 2.6

Tapping Screw

1.0 ~ 2.0

1.0 ~ 1.7

1.4 ~ 2.3

Bit Drive

HIOS Shank

H4 60mm

H4 60mm

H4 60mm

Power Supply

CLC-45

○

○

○

CLC-60

○

○

○

Suction attachment model

CLQ2 SET

CLQ4 SET

CLQ4 SET

Mouthpiece model

F3-Standard 18mm

F3-Standard 18mm

F3-Standard 18mm

Accessories

Spring

Yellow spring (Ø1.0)

Gold spring (Ø1.0)

Blue spring (Ø1.0)

Carbon brush order code

NIL

A45-0420(1pair)

CL4-0420(1pair)

Model Name

Lever Start type Model

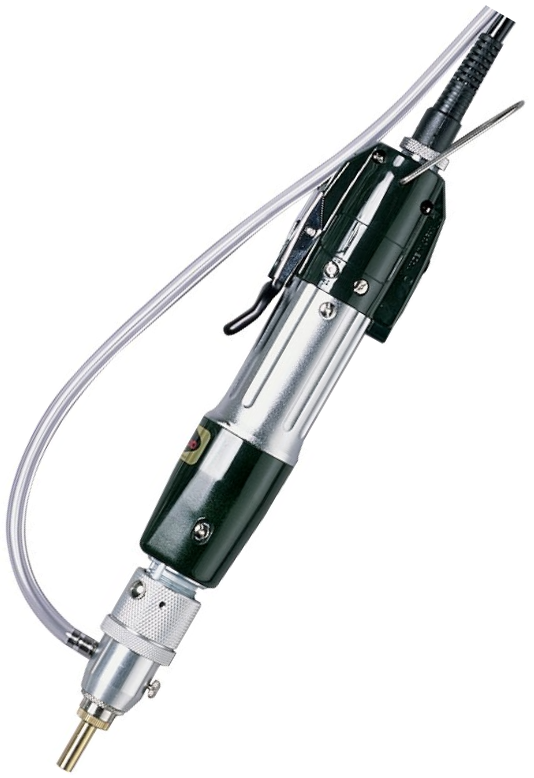

CLQ-6500

CL-7000

Output Torque Range

N.m

0.3 ~ 1.6

0.3 ~ 2.5

lbf.in

2.6 ~ 14

2.6 ~ 22

(kgf.cm)

(3 - 16)

(3 - 25)

Unloaded Rotation
(r.p.m) ± 10%

High

900

750

Low

600

---

Screw Size (mm)

Machine Screw

2.0 ~ 4.0

2.0 ~ 5.0

Tapping Screw

2.0 ~ 3.0

2.0 ~ 4.0

Bit Drive

HIOS Shank

H5 80mm

H5 80mm

Power Supply

CLC-45

○

Non support

CLC-60

○

○

Suction attachment model

CLQ65-SET

CLQ65-SET

Mouthpiece model

F6-Standard 31mm

F6-Standard 31mm

Accessories

Spring

White spring (Ø1.8)

Yellow spring (Ø2.2)

Carbon brush order code

CL65-0490(1pair)

CL65-0490(1pair)
