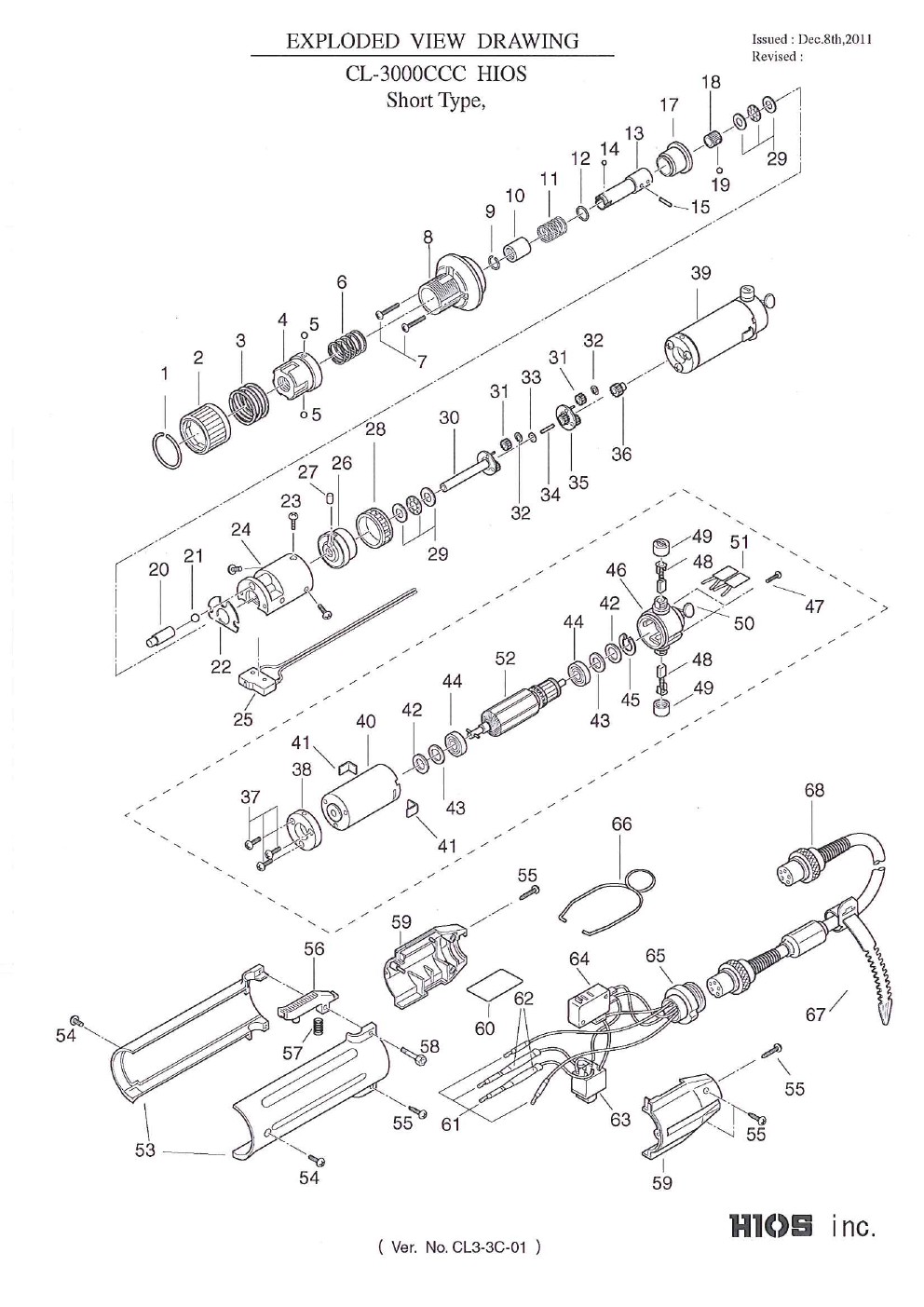

Parts List of CL-3000CCC
(HIOS
Shank, Short Type) |
|
No. |
Parts Name |
Parts No. |
|
No. |
Parts Name |
Parts No. |
|
|
Transmission Assembly 1-36 (W/O 25) |
CL3-TM |
|
|
Upper Planet Cage Assembly 31,32,35 |
CL4-3310 |
|
|
Torque Adjusting Nut Assembly 1-5 |
CL4-NT |
|
|
|
|
|
|
|
|
|
35 |
Upper Planet Cage |
CL4-0310 |
|
1 |
Nut Cover Stopper |
CL4-0010 |
|
36 |
Pinion Gear |
CL4-0320 |
|
2 |
Nut Cover |
CL4-0020 |
|
|
|
|
|
3 |
Nut Cover Spring |
CL4-0030 |
|
|
Motor |
|
|
4 |
Torque Adjusting Nut |
CL4-0040 |
|
|
|
|
|
5 |
Steel Ball Ø3.0 |
BALL-03 |
|
37 |
Set Screw 3x5 |
MSHF30050NITP |
|
|
|
|
|
38 |
Motor Front Panel |
CL4-0350 |
|
6 |
Torque Adjusting Spring Ø1.2 (Blue) |
CL3-0060 |
|
39 |
Motor (Short Size) |
CL3-0360 |
|
|
Torque Adjusting Spring Ø1. 0 (Gold) |
CL3-0060-1 |
|
40 |
Magnet Case |
— |
|
7 |
Set Screw 2.6x10 |
MSPF26100NIGP |
|
41 |
--------------- |
— |
|
8 |
Torque Adjusting Bolt |
CL3-0080 |
|
42 |
Wave Washer |
CL4-0370 |
|
9 |
Collar Stopper |
CL4-0090 |
|
43 |
Rotor Adjusting Washer 0.1 |
CL4-0380-1 |
|
10 |
Joint Shaft Collar |
CL4-0100 |
|
|
Rotor Adjusting Washer 0.2 |
CL4-0380-2 |
|
11 |
Collar Spring |
CL4-0110 |
|
|
|
|
|
12 |
Support Washer for Spring |
CL3-0620 |
|
|
Motor End Cover Assembly 44 - 51 |
CL3NL-3400 |
|
13 |
Joint Shaft |
CL3-0130 |
|
|
|
|
|
14 |
Steel Ball Ø2.0 |
BALL-02 |
|
44 |
Motor Bearing |
CL4-0450 |
|
15 |
Joint Shaft Lock Pin 2x7 |
SR20X070 |
|
45 |
Stop Ring |
CL4-0390 |
|
16 |
--------- |
— |
|
46 |
Motor End Cover |
CL3-0400 |
|
17 |
Clutch Supporter |
CL3-0160 |
|
47 |
Set Screw 1.7X10 |
STP17X100 |
|
18 |
Slide Ball Bearing |
CL3-0630 |
|
48 |
Carbon Brush |
A45-0420 |
|
|
|
|
|
49 |
Carbon Brush Cap |
A45-0430 |
|
19 |
Ball |
— |
|
50 |
Capacitor |
CL4-0441 |
|
|
Gear Assembly 20 - 36 (W/O 25) |
CL3-GR |
|
51 |
Condenser |
CL3NL-0440 |
|
|
|
|
|
52 |
Rotor |
CL3-0460 |
|
20 |
Clutch Ball Rod |
CL4-0180 |
|
53 |
Body Case A & B (Off White) |
CL3-0471 |
|
21 |
Steel Ball Ø5. 0 |
BALL-05 |
|
54 |
Set Screw 2. 6x6 |
MSPF260603CTMG |
|
22 |
Gear Case Plate |
CL4-0200 |
|
55 |
Set Screw 3.5X12 |
BOHD5F35120NITP |
|
23 |
Set Screw 2.6x5 |
MSPF260503CTMG |
|
56 |
Switch Lever |
CL4-0501 |
|
24 |
Gear Case |
CL3-0210 |
|
57 |
Switch Lever Spring |
CL4-0511 |
|
|
|
|
|
58 |
Switch Lever Plunger |
CL4-0521 |
|
25 |
Limit Switch |
CL4-0230 |
|
|
|
|
|
|
|
|
|
|
Switch Assenmbly 23, 59-66 |
CL3C-SW |
|
26 |
Internal Gear |
CL3-0240 |
|
|
|
|
|
27 |
Cam Roller |
CL4-0250 |
|
59 |
Switch Cover A & B (Off White) |
CL3-0531 |
|
28 |
Needle Ball Bearing |
CL3-0640 |
|
60 |
Name Plate |
CL3-0540 |
|
29 |
Thrust Bearing 5x11 |
CL4-0170 |
|
61 |
Terminal Holder |
CL4-0550 |
|
|
|
|
|
62 |
Noise Filter |
A45-0630 |
|
|
Lower Planet Cage Assembly 30 - 32 |
CL4-3260 |
|
63 |
For/Rev Switch |
CL4-0560 |
|
|
|
|
|
64 |
Starting Switch |
CL4-0570 |
|
30 |
Lower Planet Cage |
CL4-0260 |
|
65 |
5-Pin Connector |
CL4-0580 |
|
31 |
Planet Gear |
CL4-0270 |
|
66 |
Hanger |
CL4-0594 |
|
32 |
E-Ring |
CL4-0280 |
|
67 |
Free-Up Belt |
CL4-0600 |
|
|
|
|
|
68 |
5-Core Cord W/Connectors In Both Ends |
CL4C-0611 |
|
33 |
33 Thrust Washer |
CL4-0290 |
|
|
|
|
|
34 |
34 Center Pin |
CL4-0300 |
|
|
|
|
