Impact Screwdrivers

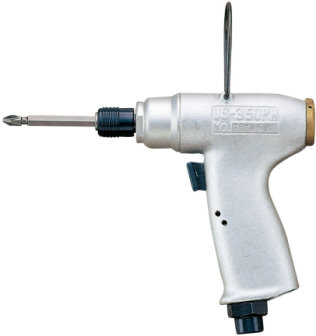

Straight Type	Pistol Type

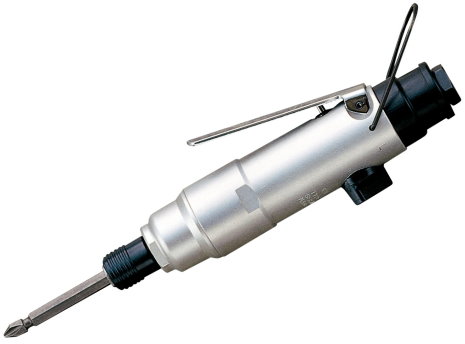

US-350W

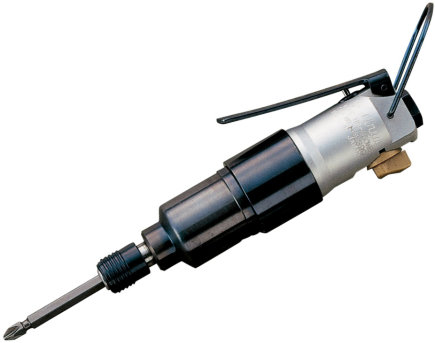

US-450WB

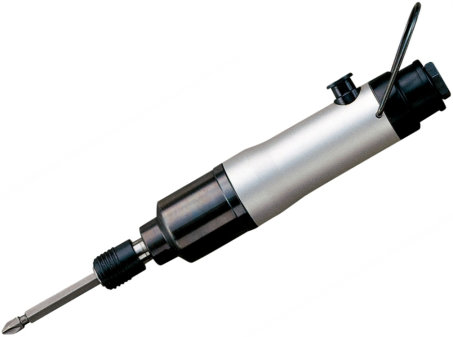

US-45W

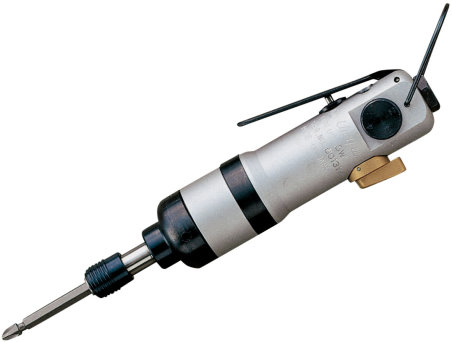

US-5W

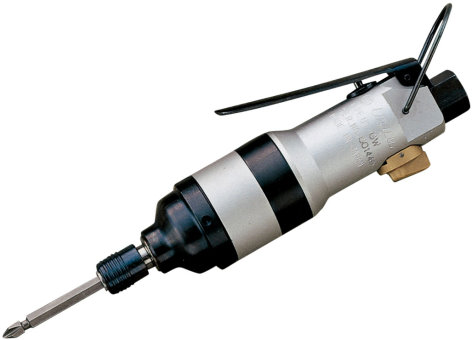

US-6W

Specifications

Model	Capacity (Screw Size)		Free Speed (Approx.)	Overall Length (about)	Weight less Bit (about)	From Center to Outside (about)	Hex. Size of Bit		Air Hose Size (inside Dia.)		Average Air Consumption
Model	mm	in	min^-1	mm	kg	mm	mm	in	mm	in	m³/min	ft³/min
US-350W	4	No.8	14000	168	0.40	17.0	6.35	1/4	6.35	1/4	0.20	7.0
US-450WB	5	No.10	11000	161	0.55	18.5	6.35	1/4	6.35	1/4	0.20	7.0
US-45W	5	No.10	12000	183	0.50	17.0	6.35	1/4	6.35	1/4	0.20	7.0
US-5W	5	No.10	9500	198	0.80	20.0	6.35	1/4	6.35	1/4	0.20	7.0
US-6W	6	1/4	9500	187	0.80	22.5	6.35	1/4	6.35	1/4	0.30	10.5

Recommended Air Pressure : 0.4MPa (57psi)

Air Inlet Size : NPT1/4
