Impact Screwdrivers


Straight Type	Pistol Type

US-350PW

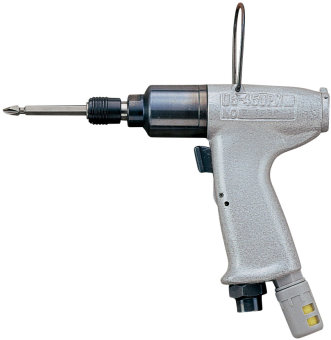

US-450PW

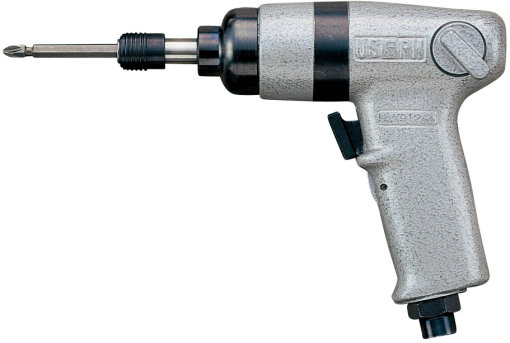

US-5PW

US-6PW

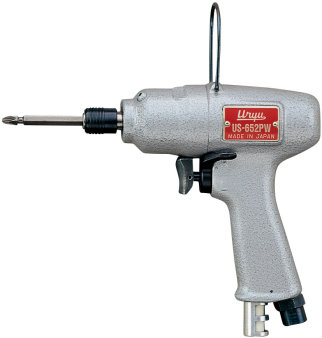

US-652PW

Specifications

Model	Capacity (Screw Size)		Free Speed (Approx.)	Overall Length (about)	Weight less Bit (about)	From Center to Outside (about)	Hex. Size of Bit		Air Hose Size (inside Dia.)		Average Air Consumption
Model	mm	in	min^-1	mm	kg	mm	mm	in	mm	in	m³/min	ft³/min
US-350PW	4	No.8	15000	121	121	17.0	6.35	1/4	6.35	1/4	0.20	7.0
US-450PW	5	No.10	14000	151	151	17.0	6.35	1/4	6.35	1/4	0.20	7.0
US-5PW	5	No.10	9500	168	168	20.0	6.35	1/4	6.35	1/4	0.30	10.5
US-6PW	6	1/4	9500	170	170	23.0	6.35	1/4	6.35	1/4	0.30	10.5
US-652PW	6	1/4	9000	155	155	23.0	6.35	1/4	6.35	1/4	0.35	12.4

Recommended Air Pressure : 0.4MPa (57psi), 0.5Mpa (72psi) for US-652PW

Air Inlet Size : NPT1/4
